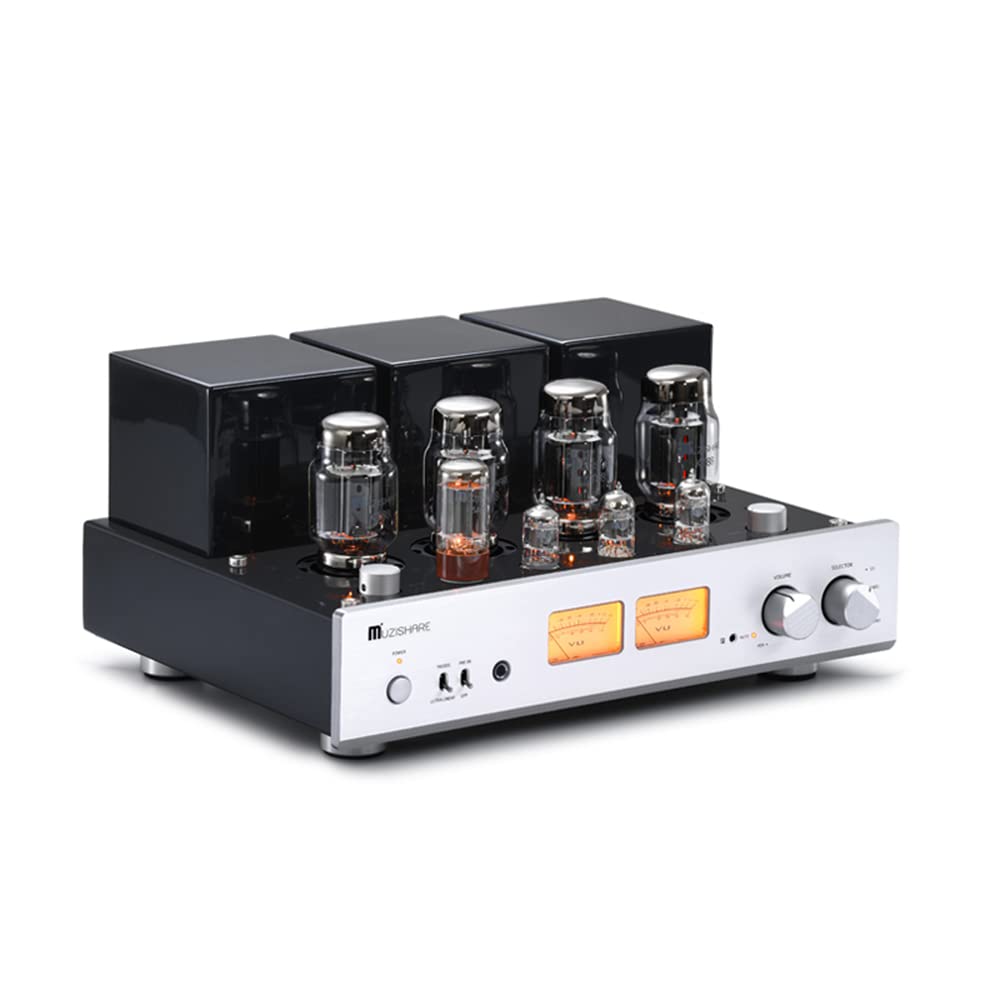

X7 KT88 x4 Vacuum Tube Integrated Amplifier Push-Pull Power Amp MM Phono Tube Amplifier Balanced XLR 2022 Remote
- Loading.....
Warm reminder: You should take about 100h time to operate the amp.RUN-IN to the amp gives it's best and stable sound.so during the first 100h use time the sound maybe is not the best,you can also use your own run-in method.
Specification:
FTC Power output：18W＋18W（RMS Triode） (20Hz - 20kHz, 8 ohms, THD+N: 1%)
23W＋23W（RMS UL） (20Hz - 20kHz, 8 ohms, THD+N: 1%)
Output Power rating (not tested under the FTC standard): 25W＋25W（RMS Triode）
45W＋45W（RMS UL）
THD+N:0.19%(1W/1kHz，rated output power less that 5%)
Frequency response：14Hz~20kHz(-1dB)
S/N Ratio：92dB A Weighted
Input Sensitivity：280mV（0db） 520mV(prein)
Input Impedance：100kΩ
Dimension (WxDxH)： 410mm x 335mm x 198mm
Output Impedance：4Ω，8Ω
Tube Complement：12AX7×1、12AU7×2、KT88×4、5AR4×1 Net Weight：22.5kg
Gross weight: 25kg
Power supply: 100V - 120V 60Hz/50Hz.
There is a selective switch to set it to be 220V-240V
Working conditions: Temperature: 0 ℃ ~ 40 ℃ Humidity: 20% ~ 80%
Storage conditions: Temperature: -20 ℃ ~ 70 ℃ Humidity: 20% ~ 90%
