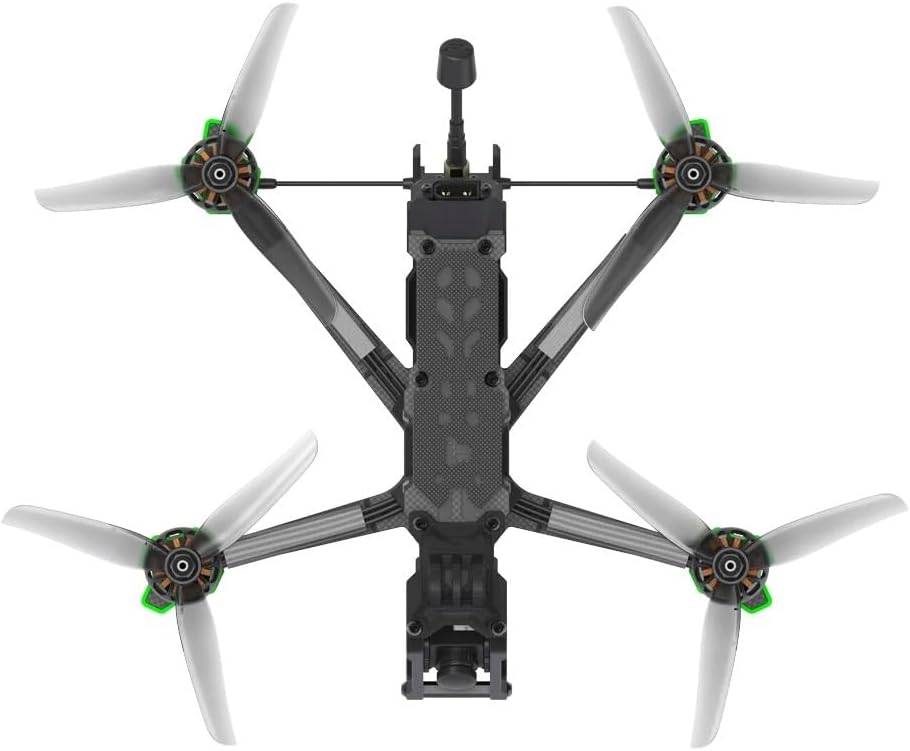

F5 V2 Analog 6S 5inch FPV Drone BNF F5X F5DSquashed-X DC With Secured Battery With Anti-Spark Filter(F5D with ELRS 2.4GHz)
- Loading.....
Specifications:
FC: F722 Flight Controller
ESC: E55 4-IN-1 2-6S 55A ESC
Video Transmission: Whoop 1.6W VTX
Frame wheelbase: 225mm (Squashed X) / 223 mm (DeadCat)
Motor: 2207 1800KV motors
Weight: 419g
Takeoff Weight: Approx. 644 g (With 6S1400mAh Battery)
Dimensions (L×W×H): 172×145×36±2mm (Squashed X) / 190×136×36±2mm (DeadCat)
Diagonal Distance: 225 mm
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 7.5 mins
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas:
Video Transmission
Product Name: Whoop 1.6W VTX
Input voltage: 7V-34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/3
Lightweight: 18.9g (excluding )
VTX telemetry: IRC Tramp
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW
Packing List
1 x F5 6S BNF
1 x Antennas
2 x Battery pad
2 x propeller(Pairs)
2 x Battery strap
